The route way illumination with integrated safety light for fixed installations consists of a light control unit (SW-2937/DFG) and a LED-lighting strip with integrated safety light (easy connect LED120plus).

The system is available up to a length of 75 m (up to 100 m on request).

The light control unit monitors continuously the main power supply and will switch immediately to the battery powered safety light in case of a breakdown of the main power.

All components meet the CE-, REACH– and RoHS-guidelines.

Illumination of a staircase with main power supply
Safety light with battery operation
Building illumination with main power supply
Safety light with battery operation

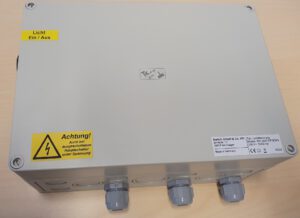

Light control unit for fixed installations

  • Device fuse 6 A
  • Latching relay
  • Rechargeable battery with charging set
  • Terminal block with quick installation clamps
  • Pulse switch for the main light (On / Off) with operation display
  • 3 connections for external pulse switches
  • 3 cable runs installed
  • 1 cable run in the subpackage
  • Plastic housing (metal housing on request)
  • Safety class IP65
  • Fixation dowels in the subpackage
  • Display of the battery voltage
Item no.: SW-2937/DFG

LED-Lighting strips with safety light for fixed installation

easy connect LED120plus/5ct

(jacket material PVC, milky)

  • 108 high performance-LEDs per meter for the main light
  • 12 high performance-LEDs per meter for the safety light
  • Milky jacket material to reduce dazzling effect
  • 5 m LED-connection cable wire terminations
  • Quick installation help
  • Installation dowels with cable ties
Item no.: 953**/5ct (** Length of the lighting strip rounded up to full meters)

easy connect LED120plus/hf/5ct

(jacket material, milky, non halogen and non silicone)

  • 108 high performance-LEDs per meter for the main light
  • 12 high performance-LEDs per meter for the safety light
  • Milky jacket material non halogen and non silicone
  • 5 m LED-connection cable, non halogen with wire terminations
  • Quick installation help
  • Installation dowels with cable ties
Item no.: 993**/5ct (** Length of the lighting strip rounded up to full meters)

Technical details of the LED-lighting system with safety light for fixed installations have been summarized in the data sheet.

The order form is available here.
